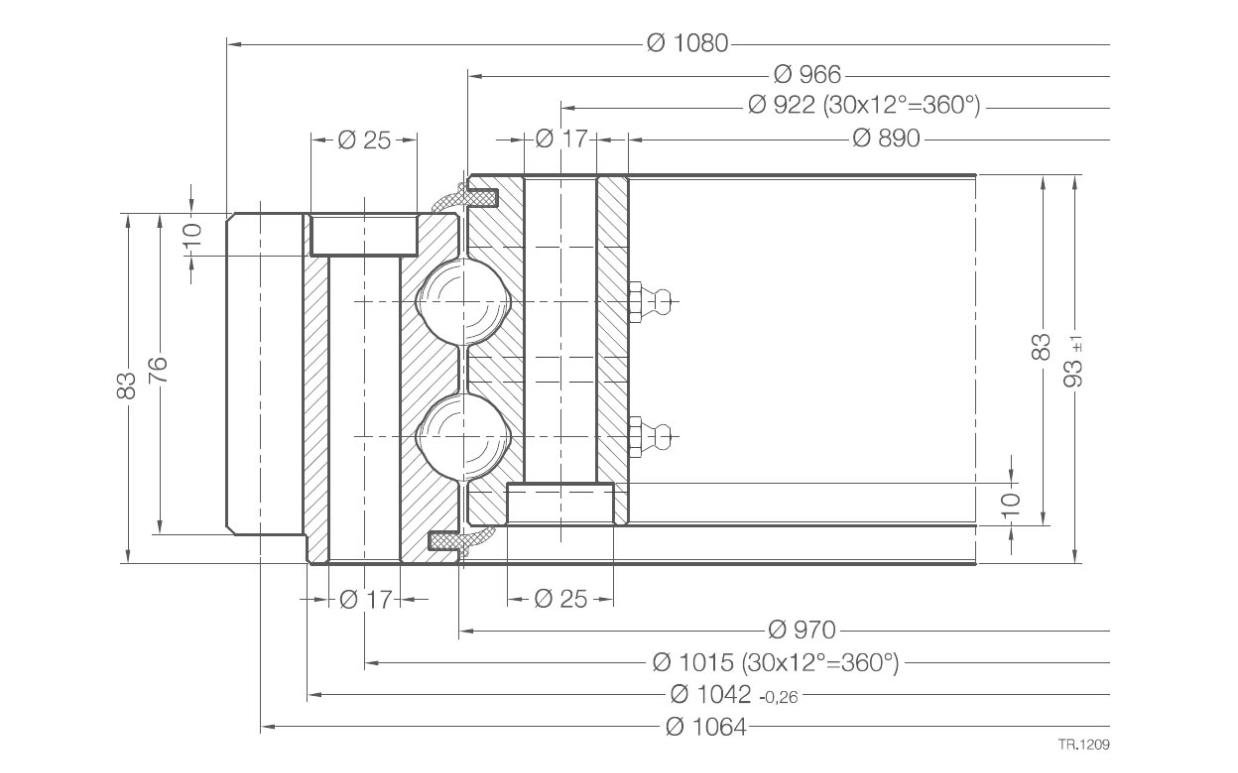

External Gear B2222-2-1200AA

Gear Standard	DIN 3972
Module (m)	8
Number of Teeth (Z)	148
Pressure Angle (α)	20°
Profile Shift Coefficient (x.m)	–
Head Undercut Amount (k.m)	–
Gear Tangential Strength F norm (kN)	48.1
Gear Tangential Strength F max (kN)	96.2
Bearing Clearance Value (Radial)	≤0.047
Bearing Clearance Value (Axial)	≤0.047
Outer Ring Connection Bolt (10.9) x Pieces	M18 x 36
Inner Ring Connection Bolt (10.9) x Pieces	M18 x 36
M16 (10.9) Bolt Tightening Torque Value (Nm)	*194	337
M16 (12.9) Bolt Tightening Torque Value (Nm)	*230	459
Grease Fitting Size and Quantity	M10x1(2×180°)
Ring Materials	42CrMo4 Q + T
Weight (kg)	210
