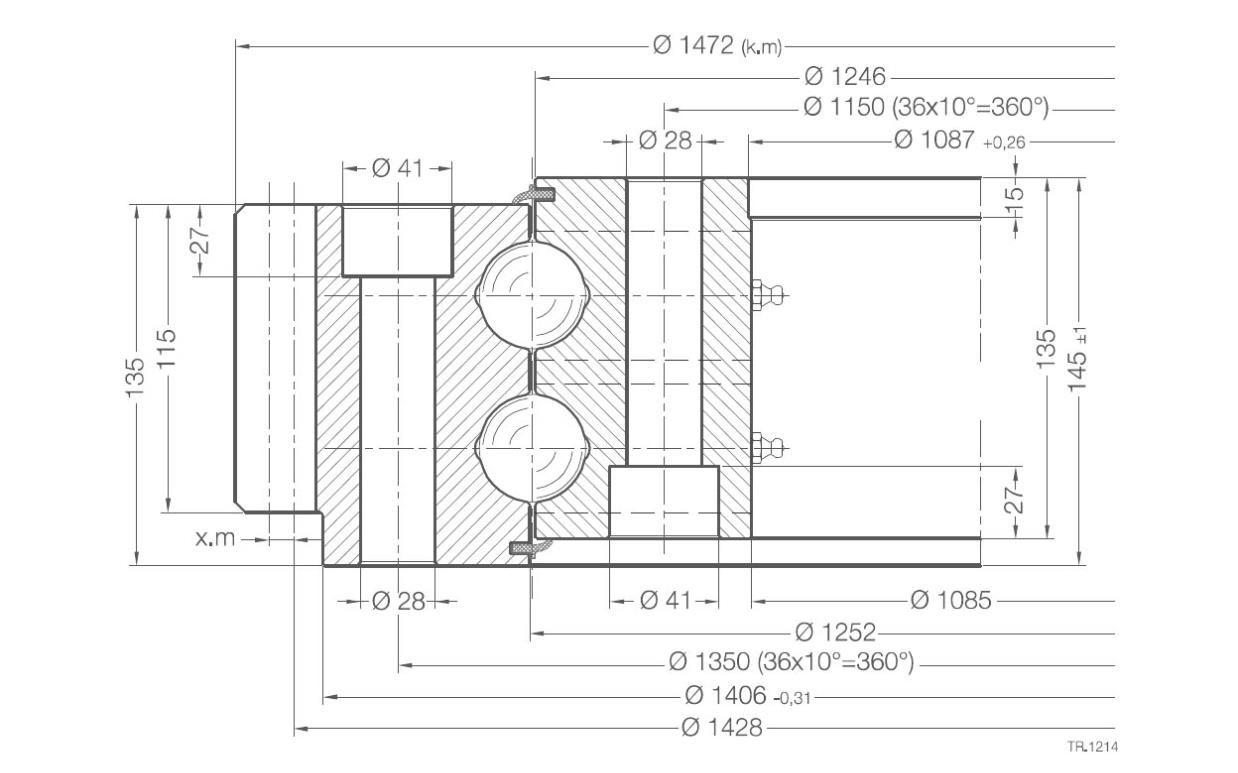

External Gear B2240-2-1472BB

Gear Standard	DIN 3972
Module (m)	14
Number of Teeth (Z)	102
Pressure Angle (α)	20°
Profile Shift Coefficient (x.m)	+9.1
Head Undercut Amount (k.m)	1.1
Gear Tangential Strength F norm (kN)	140
Gear Tangential Strength F max (kN)	280
Bearing Clearance Value (Radial)	≤0.047
Bearing Clearance Value (Axial)	≤0.047
Outer Ring Connection Bolt (10.9) x Pieces	M27 x 48
Inner Ring Connection Bolt (10.9) x Pieces	M27 x 48
M16 (10.9) Bolt Tightening Torque Value (Nm)	*698	1395
M16 (12.9) Bolt Tightening Torque Value (Nm)	*833	1665
Grease Fitting Size and Quantity	M10x1(2×180°)
Ring Materials	42CrMo4 Q + T
Weight (kg)	645
