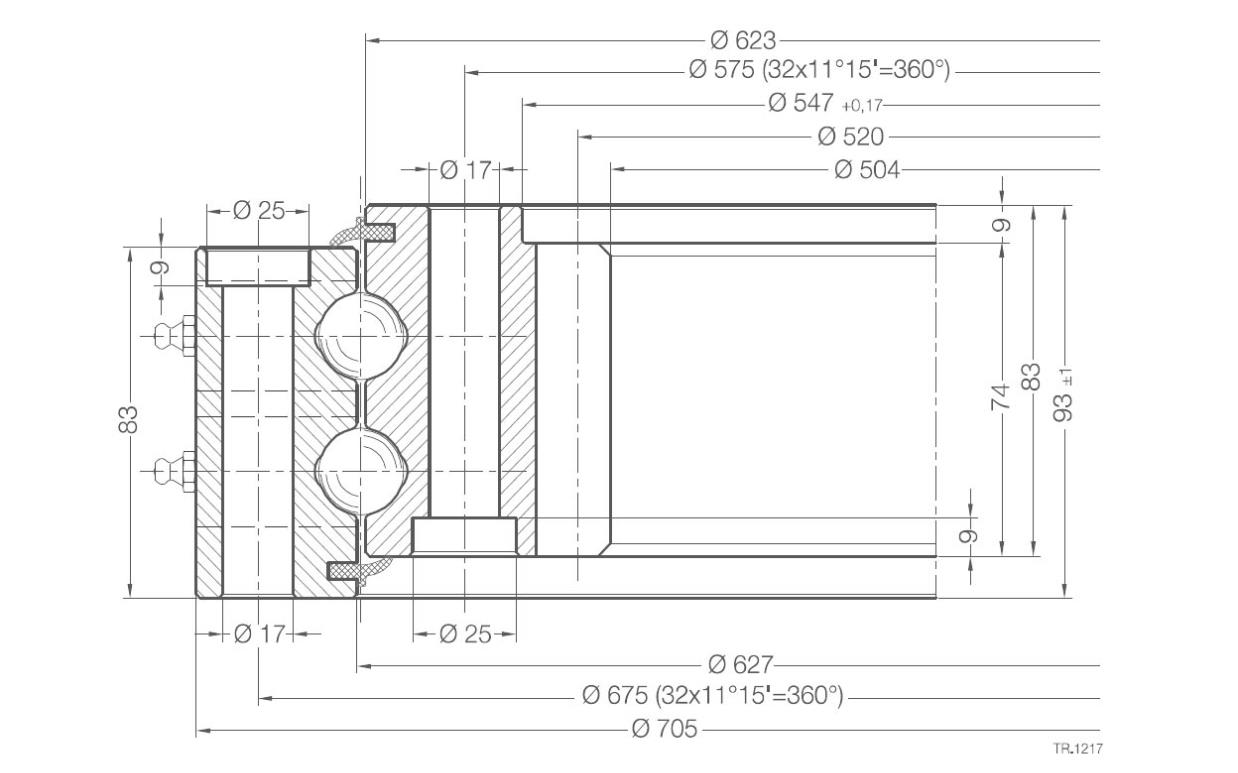

Internal Gear B2220-1-0705BB

Gear Standard	DIN 3972
Module (m)	8
Number of Teeth (Z)	65
Pressure Angle (α)	20°
Profile Shift Coefficient (x.m)	–
Head Undercut Amount (k.m)	–
Gear Tangential Strength F norm (kN)	46.3
Gear Tangential Strength F max (kN)	92.6
Bearing Clearance Value (Radial)	≤0.032
Bearing Clearance Value (Axial)	≤0.032
Outer Ring Connection Bolt (10.9) x Pieces	M16 x 36
Inner Ring Connection Bolt (10.9) x Pieces	M16 x 36
M16 (10.9) Bolt Tightening Torque Value (Nm)	*140	279
M16 (12.9) Bolt Tightening Torque Value (Nm)	*167	333
Grease Fitting Size and Quantity	M10x1(2×180°)
Ring Materials	42CrMo4 Q + T
Weight (kg)	95
