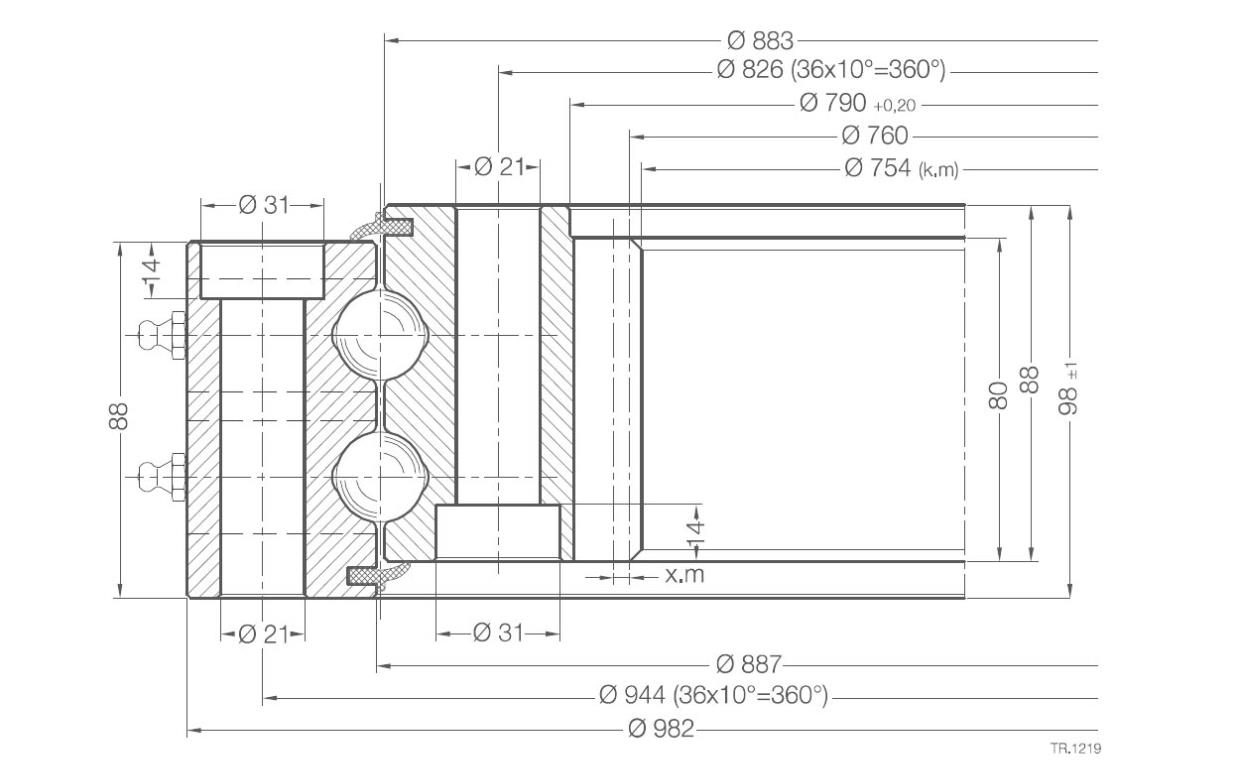

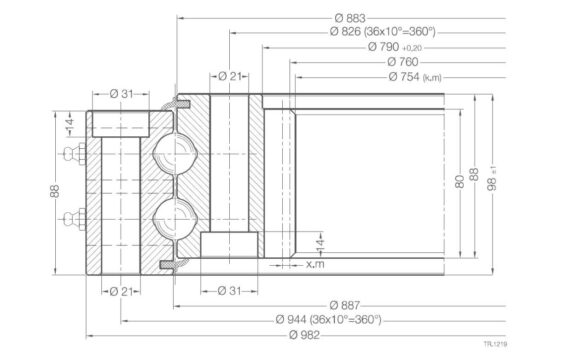

Internal Gear B2222-1-0982BB

Gear Standard	DIN 3972
Module (m)	8
Number of Teeth (Z)	95
Pressure Angle (α)	20°
Profile Shift Coefficient (x.m)	-4
Head Undercut Amount (k.m)	1
Gear Tangential Strength F norm (kN)	55.7
Gear Tangential Strength F max (kN)	111.4
Bearing Clearance Value (Radial)	≤0.040
Bearing Clearance Value (Axial)	≤0.010
Outer Ring Connection Bolt (10.9) x Pieces	M20 x 36
Inner Ring Connection Bolt (10.9) x Pieces	M20 x 36
M16 (10.9) Bolt Tightening Torque Value (Nm)	*279	558
M16 (12.9) Bolt Tightening Torque Value (Nm)	*324	648
Grease Fitting Size and Quantity	(2×180°)M10x1
Ring Materials	42CrMo4 Q + T
Weight (kg)	170
