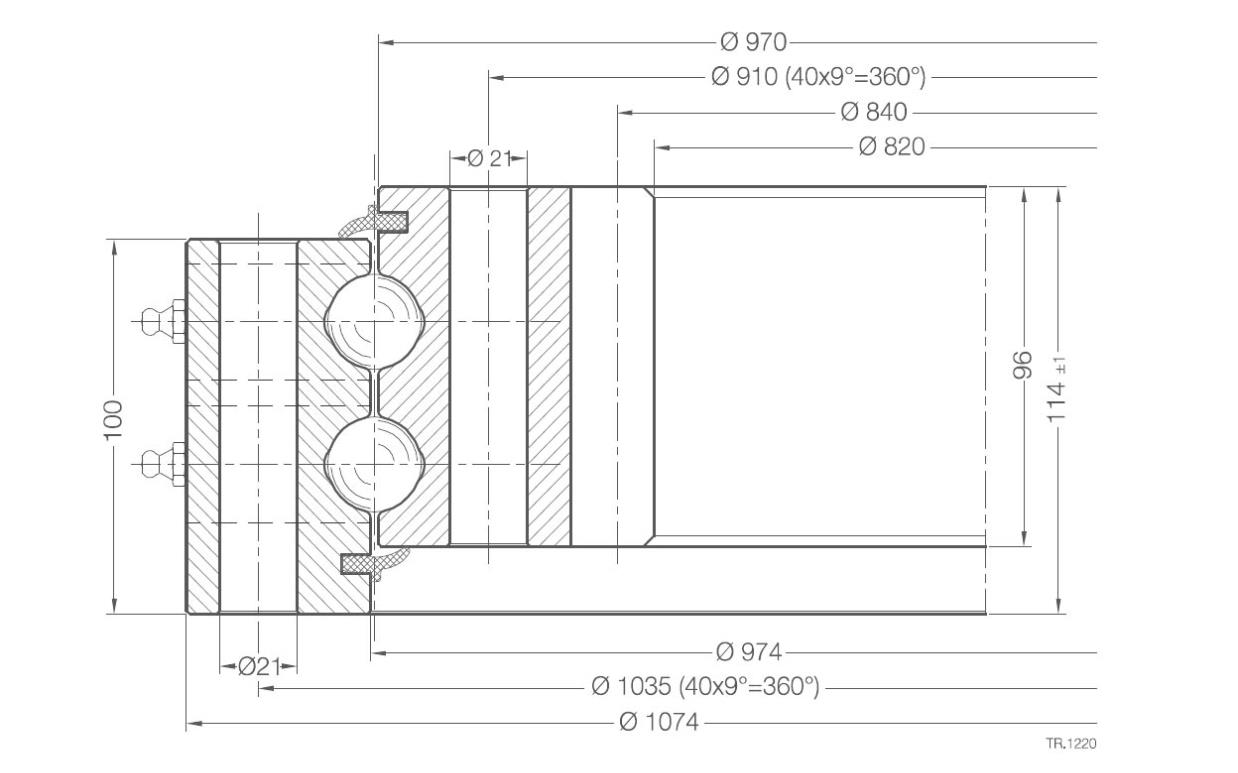

Internal Gear B2225-1-1074AA

Gear Standard	DIN 3972
Module (m)	10
Number of Teeth (Z)	84
Pressure Angle (α)	20°
Profile Shift Coefficient (x.m)	–
Head Undercut Amount (k.m)	–
Gear Tangential Strength F norm (kN)	75.1
Gear Tangential Strength F max (kN)	150.2
Bearing Clearance Value (Radial)	≤0.040
Bearing Clearance Value (Axial)	≤0.040
Outer Ring Connection Bolt (10.9) x Pieces	M20 x 40
Inner Ring Connection Bolt (10.9) x Pieces	M20 x 40
M16 (10.9) Bolt Tightening Torque Value (Nm)	*279	558
M16 (12.9) Bolt Tightening Torque Value (Nm)	*324	648
Grease Fitting Size and Quantity	M10x1(2×180°)
Ring Materials	42CrMo4 Q + T
Weight (kg)	234
