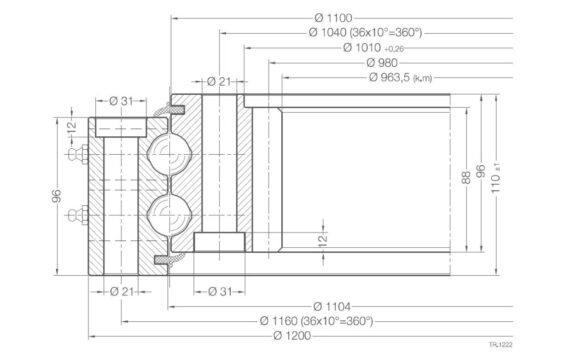

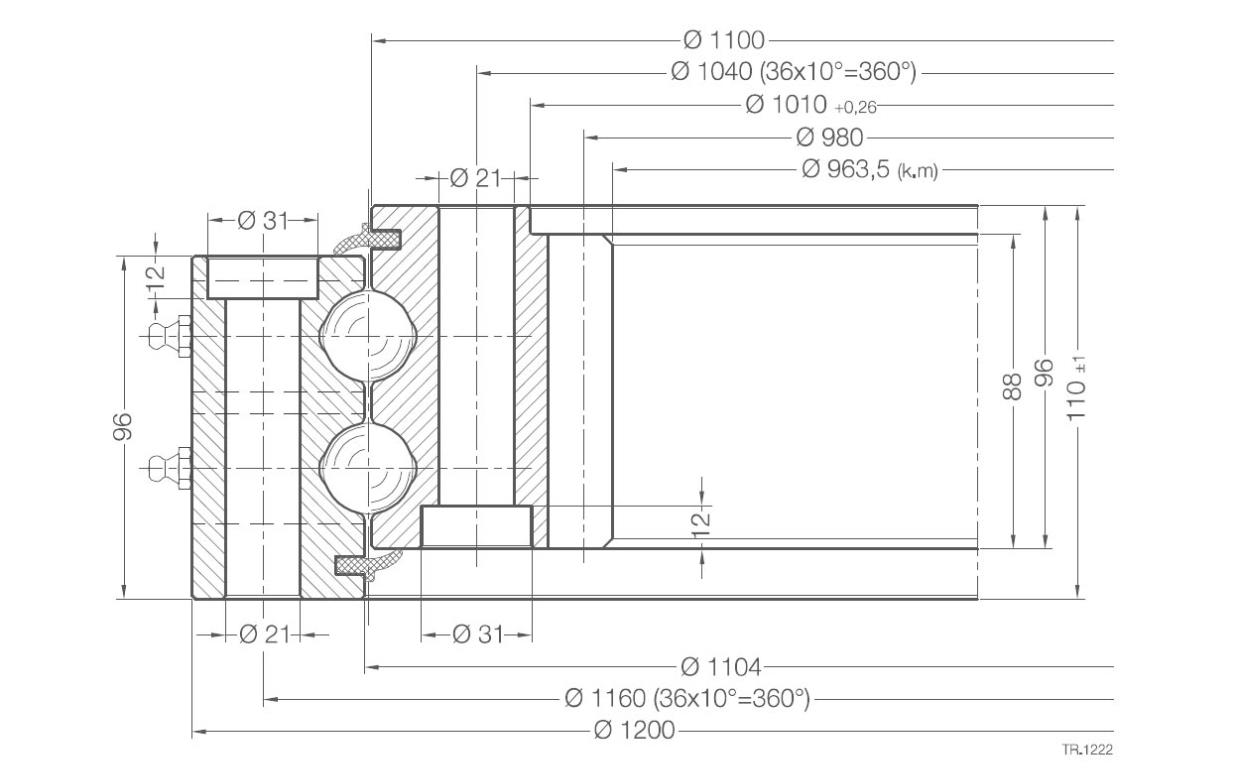

Internal Gear B2225-1-1200BB

Gear Standard	DIN 3972
Module (m)	10
Number of Teeth (Z)	98
Pressure Angle (α)	20°
Profile Shift Coefficient (x.m)	–
Head Undercut Amount (k.m)	1.75
Gear Tangential Strength F norm (kN)	68.9
Gear Tangential Strength F max (kN)	137.8
Bearing Clearance Value (Radial)	≤0.047
Bearing Clearance Value (Axial)	≤0.047
Outer Ring Connection Bolt (10.9) x Pieces	M20 x 36
Inner Ring Connection Bolt (10.9) x Pieces	M20 x 36
M16 (10.9) Bolt Tightening Torque Value (Nm)	*279	558
M16 (12.9) Bolt Tightening Torque Value (Nm)	*324	648
Grease Fitting Size and Quantity	M10x1(2×180°)
Ring Materials	42CrMo4 Q + T
Weight (kg)	239
