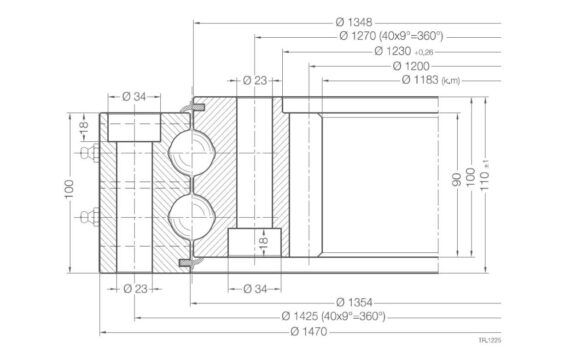

Internal Gear B2228-1-1470BB

Gear Standard	DIN 3972
Module (m)	10
Number of Teeth (Z)	120
Pressure Angle (α)	20°
Profile Shift Coefficient (x.m)	–
Head Undercut Amount (k.m)	1.5
Gear Tangential Strength F norm (kN)	70.4
Gear Tangential Strength F max (kN)	140.8
Bearing Clearance Value (Radial)	≤0.055
Bearing Clearance Value (Axial)	≤0.055
Outer Ring Connection Bolt (10.9) x Pieces	M22 x 40
Inner Ring Connection Bolt (10.9) x Pieces	M22 x 40
M16 (10.9) Bolt Tightening Torque Value (Nm)	*374	747
M16 (12.9) Bolt Tightening Torque Value (Nm)	*437	873
Grease Fitting Size and Quantity	M10x1(2×180°)
Ring Materials	42CrMo4 Q + T
Weight (kg)	379
