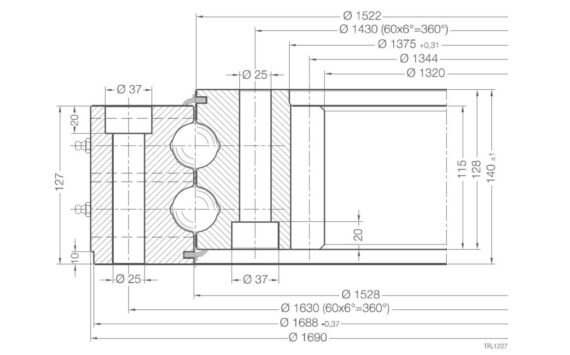

Internal Gear B2236-1-1690BB

Gear Standard	DIN 3972
Module (m)	12
Number of Teeth (Z)	112
Pressure Angle (α)	20°
Profile Shift Coefficient (x.m)	–
Head Undercut Amount (k.m)	–
Gear Tangential Strength F norm (kN)	108.3
Gear Tangential Strength F max (kN)	216.6
Bearing Clearance Value (Radial)	≤0.055
Bearing Clearance Value (Axial)	≤0.055
Outer Ring Connection Bolt (10.9) x Pieces	M24 x 60
Inner Ring Connection Bolt (10.9) x Pieces	M24 x 60
M16 (10.9) Bolt Tightening Torque Value (Nm)	*477	954
M16 (12.9) Bolt Tightening Torque Value (Nm)	*558	1116
Grease Fitting Size and Quantity	M10x1(2×180°)
Ring Materials	42CrMo4 Q + T
Weight (kg)	726
